Evaluations

International Code Council Evaluation Service (ICC-ES)

ICC-ES came into being on February 1, 2003, when America’s four building-product evaluation services officially combined their operations. The four “legacy” evaluation services that came together to form ICC-ES were the National Evaluation Service, Inc.; BOCAI Evaluation Services; ICBO Evaluation Service, Inc.; and SBCCI Public Service Testing and Evaluation Services, Inc. Through the legacy evaluation services, ICC-ES has a history that goes back more than seventy years. Below you will find the ICC Reports, in PDF format, relating to our products for download:

FTX Brand Shakes and Shingles:
ICC-ESR-1410, June 2006

FRX Brand Exterior Lumber and Plywood
ICC-ESR-1159, September 2007

FRN® FRT Wood: Fire Performance Properties

Flame Spread and Smoke Development

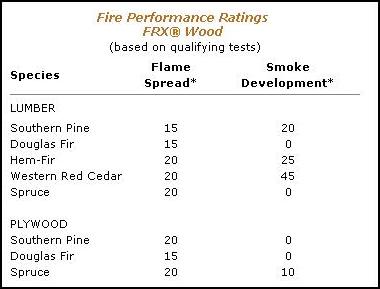

Model building codes require a flame spread rating of 25 or less and a smoke developed rating of 450 or less, when the standard surface burning test is extended to 30 minutes and after weathering, to qualify as a Class A material. FRX® retardant treated wood maintains ratings less than both those levels for all species listed. See accompany8ing table for specific ratings by species.

The ASTM E 84 tunnel test compares surface burning characteristics of tested materials to those of asbestos cement board and untreated red oak lumber. A rating of 0 is assigned to asbestos cement board and a rating of 100 is assigned to untreated red oak flooring. Flame spread ratings of various species of untreated lumber range from 80 to 230. During this test, smoke emissions are also measured and ratings are assigned on the same scale. The ratings are established during the first 10 minutes. Furthermore, unlike the less stringent requirements for fire retardant coatings, building codes required that the test be extended from 10 minutes to 30 minutes and the flame spread not progress more than 10 ½ feet beyond the burners and show no evidence of progression combustion.

For exterior use, FRT wood must undergo further ASTM E 84 testing, which is conducted on material that has been through the ASTM D 2898 accelerated weathering test, also referred to as the “800-inch rain test.”

*Test extended to 30 minutes and after completion of ASTM D 2898 weathering.

Standard tests for surface burning characteristics of materials referenced in the model codes as a basis of acceptance are all essentially the same:

ASTM E 84 Standard Test Method for Surface Burning Characteristics of Building Material.
NFPA 255 – Method of Test Surface Burning Characteristics of Building Materials.
UBC Standard 8-1 Test Method for Surface-Burning Characteristics of Building Materials.
